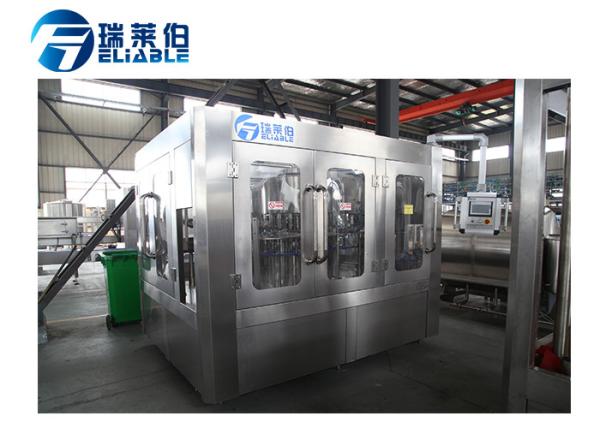

Drinking Water / Beverage Production Line 3 in 1 Washing Filling
Capping Machine
Overview
| Item Type | Water filling machine |
| Place of Origin | Jiangsu, China (Mainland) |
| Control | PLC ,Touchscreen |
| Voltage | 380V 50 Hz 3phase or customized |
| Power | 3.5KW |
| Dimension | 2650*2000*2400MM |
| Weight | 3.0T |
| Capacity | 6000BPH/500ML |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Bottle type | circular or square PET or plastic |
| Bottle valume | 0.2-2L |
| Suitable bottle | Plastic |
| Application | Water filling |
| Certification | CE SGS ISO |
| Warranty | 1 year |
| Advantage | High quality,high speed,best price,can be customized by your order |
Why our machine is better than other similar machines?
1. Each water filling machine element tha contacts with the liquid
is made of high quality Stainless steel 304, if needed,SS 316 is also available.
2. The water filling machine adopts bottle neck holding
transmission technology to realize fully automatic rinsing, filling
and capping.
3. Most elements of the electrical system use famous international
brand, such as Mitsubish, Omron brand.
4. The water filling machine obtain the advantages of good abrasive
resistance,high stability,low failure rate, etc. The quality of the equipments reaches the international advanced level.
5. Advanced technologies, human-machine interface touch screen and
PLC program control are adopted in this machine.
6. Nozzles in the grab can guarantee the complete wash of the
interior of the bottle.
7. Easy to operate, save the cost of workers.
Function :
(1) The water bottling machine has three functions for bottle
rinsing, filling and capping, which are composed in one body of the
machine . The whole process is full automatic.
(2)Adopt air conveyor system with high efficient filter to feed
bottle, this can keep the inside of the filling machine clean
With bottle neck holding in the whole course and protect bottle
block device.
Washing Part
·All 304 stainless steel rinser heads, water spray style inject
design, more save water consumption & more clean
·304 Stainless steel Gripper with plastic pad, ensure minimal
bottle crash during washing
·304 stainless steel washing pumps
Filling Part
·Filling temperature is adjustable.
·Center 304L stainless steel filling nozzles designed to achieve
maximum flow and minimum bottle deformation during filling.
·All 304 stainless steel contact parts and liquid tank, fine
polishing, no dead ends, easy to clean.
·No bottles without filling.
Capping Part
Place & capping system, electromagnetic capping heads, with burden
discharge function, make sure minimum bottle crash during capping
·All 304stainless steel construction
·No bottle no capping,
·Automatic stop when lack of bottle
The technology datas of some we can provide are showing you
| Model | CGFA 8-8-3 | CGFA 12-12-6 | CGFA 18-18-6 | CGFA 24-24-8 | CGFA 32-32-10 | CGFA 40-40-12 | CGFA 50-50-15 |
| Washing No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
| Filling No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping No | 3 | 6 | 6 | 8 | 10 | 12 | 15 |
| Capacity(500ml) | 2000BPH | 4000BPH | 6000BPH | 10000BPH | 12000BPH | 16000BPH | 24000BPH |
| Installed Capacity | 2kw | 3.5 kw | 4kw | 4.8kw | 7.6kw | 8.3kw | 9.6kw |
| Overall size | 2000*1600 *2400 | 2450*1800 *2400 | 2650*1900 *2400 | 2900*2100 *2400 | 4100*2400 *2400 | 4550*2650 *2400 | 5450*3210 *2400 |
| Weight | 2 T | 2.2 T | 3 T | 4 T | 8 T | 12 T | 18 T |
| Diameter | Φ 50-110mm |
| Bottle Height | 150-340mm |
| Volume | 200-2000ml |
