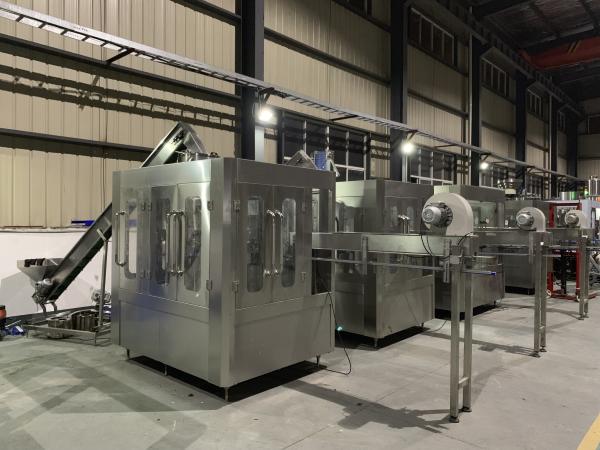

Automatic Juice Beverage Filling Machine For Tea Hot Drink Plastic
Bottle
Beverage Filling Machine --- Specifications
1. This Beverage Filling Machine is used in production of fruit
juice/ tea hot drink packed in polyester bottles. Washing, filling
and capping are integrated in one machine.
2. The most advantaged technology from Japan and Germany is
employed in the Beverage Filling Machine. The gravity fixed liquid
surface filling is fast, the amount of liquid is accurately
controlled and the dropping and leakage are avoided.Spring cramps
are used in the bottle washing process. The empty bottles can be
turned over 180º along the conveying rail. There are two times of
internal and external washing. The efficiency of bottle washing is
high.
3. The magnetic torque of the Beverage Filling Machine is used for
screw capping. The power of screw capping can be adjusted without
steps. The power of the screw capping can also be fixed, and the
caps will not be damaged, the capping is reliable.
4. The whole Beverage Filling Machine is controlled by PLC with
touch-screen as the human-machine interface. The amount of the
drinks in the storage tank can be controlled automatically. The
filling and capping will stopped automatically when there is no
bottle. When bottles are cramped wrongly or when caps are not
available. The Beverage Filling Machine can be stopped
automatically.
Beverage Filling Machine --- Technical parameters
Model | CGFR8-8-3 | CGFR16-12-6 | CGFR18-18-6 | CGFR24-24-8 |
Rinsing Head | 8 | 16 | 18 | 24 |
Filling Head | 8 | 12 | 18 | 24 |
Capping Head | 3 | 6 | 6 | 8 |
RatedCapacity | 2000BPH | 4000BPH | 7000-8000BPH | 10000-12000BPH |
Overall Size | 1900*1420*2000mm | 2200*1600*2300mm | 2450*1900*2300mm | 2750*1180*2400mm |
Weight(Kg) | 1.5T | 2.2T | 3.0T | 4.0T |
Power(KW) | 3.0kw | 3.5kw | 4.0kw | 4.8kw |
Rated Voltage | 380V | 380V | 380V | 380V |
What service Reliable Machinery Co.,Ltd can offer you ?
- Your inquiry related to our product & price will be replied within
24hours
- Well-trained & experienced staff are to answer all your inquiries
in English and Chinese
- Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
- OEM & ODM projects are both available
- Your business relationship with us will be confidential to any
third party.
- Good after-sale service offered, please get back to us if you got
any questions.
After Service:
We have 1 year warranty, and lifetime maintenance.Within one year,
if there is some accessory going wrong, we will send you the
accessory at once, free of charge.
1). Within one month, if the machine is of any big fails, we will
send you a new machine.
2). Within one year, if you send back the equipment for repair, we
will be responsible for the repair, including the changes of
accessories; Both of them are free of charge.
3). After one years, we offer to repair the machine, but we quire
for the cost of the changed parts, not for manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions from our technical department,
we can supply on-line service Or we can send professional engineers
to help you debug them.
