Rotary 3 In 1 Automated Bottling Equipment With SS 314 Material ,
Compact Structure
Quick Detail:
Name: Rotary 3 in 1 Water Bottle Filling Machine With SS 314 Material
Material: Food stage stainless steel
Control: PLC &touch screen control
Capacity: 4000bph
Suitable Bottle: PET Bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: washing filling capping 3 in 1
Technology: Advanced
After-sales service provided: Engineers available to service machinery overseas
Description:
1. This drinking water bottling machine is used in non-soda of
mineral water ,pure water packged in polyester bottle ,washing
,filling and capping are intergrated in one machine .
2. The advanced technology is used in the drinking water bottling
machine, gravity fixed liquid surface filling is used ,the amount
of liquid is controlled accurately ,the filling is fast ,the amount
of liquid is controlled accurately ,the dropping and leakage id
avoided.

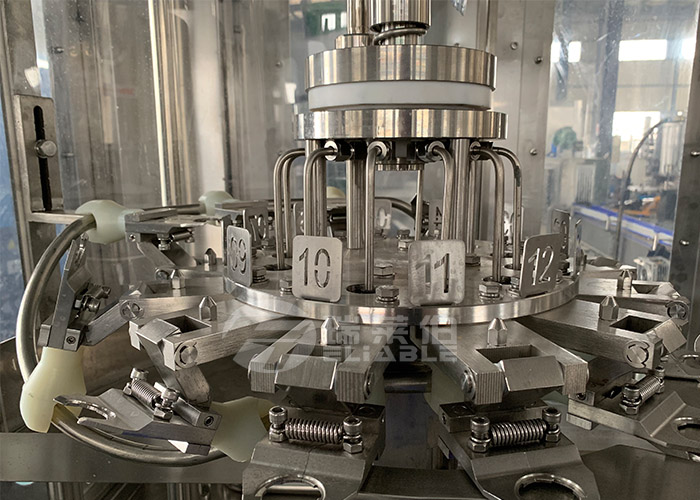

3. Spring crampe is used in the washing process of this water
filling machine, the empty bottle can turn over 180 degree along
the conveying rail ,there are two times of internal and external
washing ,the efficiency is high.
4. The magnetic torque is used for screwing capping in this water
filling machine, the power of screwing capping can be adjusted
without steps and the power also can be fixed ,and the cap will not
be damaged and the sealing is reliable .
5. The whole drinking water bottling machine is controlled by PLC,
the liquid in the storage tank can be controlled automatically .the
filling and capping process will be stopped when there is no bottle
or the cap is no available or the bottle is cramped wrongly.
6. This drinking water bottling machine is used to produce
polyester bottled mineral water, purified water, alcoholic beverage
machinery and other non-gas beverage machinery.
7. The drinking water bottle filliing machine adopts hanging type
conveying-bottle structure to make changing bottle model more
convenient, faster and easier.
8. Advanced programmable PLC is equipped to control the main water
filling machine. Main electronic components are all from famous
international enterprises .All spare parts that connect with
material are made from high-quality stainless steel.
9. The automation is high. It is good equipment for choosing this
water filling machine.
10. This drinking water bottling machine can do the bottles from
size 300ml to 1500ml. And little spares are need when changing
bottles. We suggest users to take same specification bottles,
especially the same bottle neck.
Rotary 3 In 1 Automated Bottling Equipment With SS 314 Material ,
Compact Structure
Specifications:
Model | CGF8-8-3 | CGF12-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-10 | CGF50-50-12 |
Washing No. | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
Filling No. | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
Capping No. | 3 | 6 | 6 | 8 | 10 | 10 | 12 |
Production capacity (500ml b/h) | 2000 | 4000 | 7000-8000 | 10000-12000 | 12000-15000 | 15000-18000 | 20000-22000 |
Installed Capacity(kw) | 3 | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
Overall size | 2250*1800 *2400 | 2450*1800 *2400 | 2650*1900 *2400 | 2900*2100 *2400 | 4100*2400 *2400 | 4550*2650 *2400 | 5450*3210 *2400 |
1. Washing part
It is mainly composed of washing pump, bottle clamps, water
distributor, up turn-plate, guide rail, protection cover, spraying
device, defrosting tray, rinse water take and rinse water refluxing
tank.
2. Filling Part
It is mainly composed of filling barrel, filling valves (normal
temperature and normal pressure filling), filling pump, bottle
hanging device / bottle pedestals, elevating device, liquid
indicator, pressure gauge, vacuum pump, etc.
3. Capping part
It is mainly composed of capping heads, cap loader (separated), cap
unscrambler, cap drop rail, pressure regular, cylinder and also we
need an air compressor as the auxiliary external equipment.
General Information
Place of Origin | China,Jiangsu |
Brand Name | Reliable |
Model | CGF 12-12-6 |
Color | Sliver Grey |
Power | By order |
Minimum Order Quantity | 1 set |
Price | Negotiable |
