Tea / Coffee Liquid Filler Equipment High Viscosity Filling Machine 5.5Kw


Usage

For beer , carbonated drink , soda water etc.

Main Technical Parameter

Specification

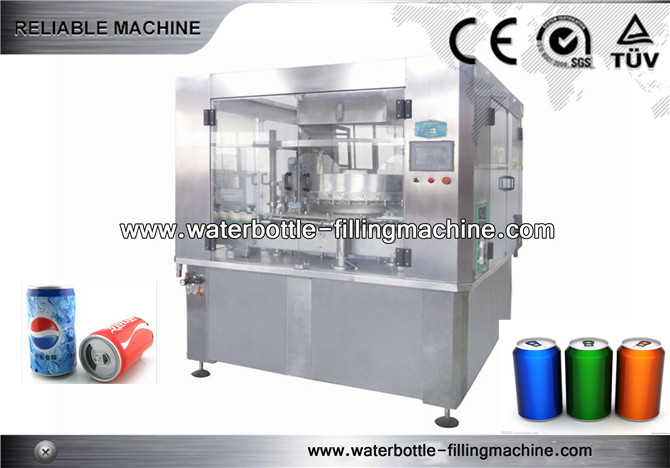

Automatic Can Filling Sealing Machine is suitable for filling and sealing of carbonated drink beer and beverage in the industrial of pop can beverage field. The filling and seaming are of integral design. The principle of equal pressure filing is adopted. During filing, after the empty can reaches into the can lifting cylinder after passing through the pneumatic triplex parts, and the empty can is raised and the conical seal gasket under the filling valve is sealed. The position turning block of the filling valve turns the position and opens the valve under the action of another cylinder. The air is filled into the empty can to form equal pressure. From a large material barrel, the beer passes through 14 small conduits and flows into the empty can. When the liquid level in the empty can blocks the gas return pipe mouth, then the filling stops. Under the action of arm, the de-foaming valve will slowly discharge the air and pressure, the can supporting cylinder will continue to fall. After it is discharged, the can is sent to the sealing machine for sealing by the hook chain that runs synchronously. During the sealing, the sealing wheel carries out pre-sealing and then real sealing. After it is sealed, the can is pushed out by the beating head of the cap beating mechanism and then dialed by dial to the conveyor belt for conveying.

Automatic Can Filling Sealing Machine adopts PLC, frequency converter, human machine interface controlling system, having the advanced controlling technologies, such as frequency control; no can no filling and so on. The accurate production rate and quantity will be displayed on touch-screen via the kinds of sensors on the machine. Moreover, the production rate can be set on the touch screen. The main motor and other electrical equipments are all in protection state. Meanwhile all of the malfunctions can be found out easily, because they will be displayed on the touch screen. The main electric and pneumatic components of the machine are famous imported brands, and it also can be disposed according to client’s requirements.

What service Reliable Machinery Co.,Ltd can offer you ?

• Your inquiry related to our product & price will be replied within 24hours
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
• OEM & ODM projects are both available
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions

Warranty and Installation

1. Engineer will be sent to your side as soon as you get all your machines ready.
2. Installment USD60~150/day. Person as allowance
3. Training fee is free for customer’s workers within the installation period
4. We have one year warranty and come with at least one year recommended spare parts

Welcome To Visit Zhangjiagang Reliable Machinery Co,Ltd

Zhangjiagang Reliable Machinery Co., Ltd

Zhangjiagang Reliable Machinery Co., Ltd is a profeç manufacturer and exporter that is concerned with the design, development and production of Beverage Filling Machines. We are located in Zhangjiagang , Jiangsu , China. with convenient transportation access. Covering an area of 10000 square meters, we now have over 80~100 employees, boast an annual sales figure that exceeds USD10,000,000 and currently export over 80% of our production worldwide.
