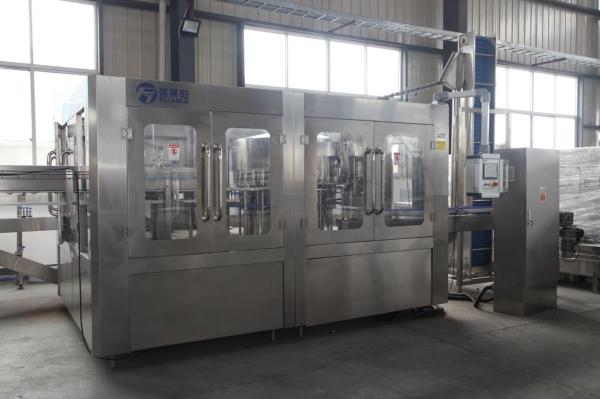

Full Automatic PET Bottled Water Filling Machine For Small Mineral
Water
1.Bottle blowing machine (Semi-automatic / Automatic)
2.Water treatment system (Pure Water / Mineral Water)
3.Filling machine (Water/Juice/Carbonated Drinks/Yogurt/Tea/Milk
and so on.)
4.Labeling machine (Shrinks Sleeve Labeling Machine/Adhesive
Sticker Labeling Machine/OPP Hot Melt Labeling Machine)
5.Date printer (Inkjet Printer/Laser Date Printer)
6.PE packing machine ( PE Film Shrink Sleeve Package Machine/Carton
Package Machine/Half-tray Shrink Wrapping Machine )
7.Injection molding machine (All Types)
Besides,I think this information you will be interested in:
| 1 | Min Order: 1 set |
| 2 | Payment Terms:30% by T/T ad down payment, 70% by T/T before
shipment. |
| 3 | Delivery Time: 30 working days after getting 30% down payment and
after confirm preform bottle & cap samples. |
| 4 | Installment:If you needed, We will send engineers to the factory
after preparation work is completed. |
Quick Detail:
| Name: Full Automatic PET Bottle Filling Machine For Small Mineral Water
Machines |
| Capacity: 12000-15000bph |
| Material: Food stage stainless steel |
| Control: PLC & touch screen control |
| Suitable Bottle: PET bottle |
| Bottle Volume: 0.3-2L |
| Dimension: By order |
| Function: washing filling capping 3 in 1 |
| Technology: Advanced |
| After-sales service provided: Engineers available to service machinery overseas . |
Description:
1.This drinking water filling equipment adopts bottle neck holding
transmission technology to realize fully automatic rinsing, filling
and capping. Most elements of the electrical system employ famous
brand advanced products. Each machine element that contacts with
the liquid is made of high quality stainless steel.They obtain the
advantages of good abrasive resistance, high stability, low failure
rate, etc.
2.The quality of the equipments reaches the international level.
3.The rinsing, filling and capping will be finished just by one
machine. It is very convenient to change bottle size by means of
advanced bottle conveying technology--bottleneck clamping & bottle
suspending technology.
4.Advanced programmable PLC is equipped to control the main
machine. Main electronic components are all from famous
international enterprises. All spare parts that may touch with
water are made from high-quality SUS304 stainless steel.
Specifications:
Model | CGF8-8-3 | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
Rinsing Head No. | 8 | 16 | 18 | 24 | 32 |
Filling Head No. | 8 | 12 | 18 | 24 | 32 |
Capping Head No. | 3 | 6 | 6 | 8 | 10 |
RatedCapacity (BPH) | 2000 | 4000 | 7000-8000 | 10000-12000 | 12000-15000 |
Overall Size (MM) | 1900*1420*2000mm | 2200*1600*2300mm | 2450*1900*2300mm | 2750*1180*2400mm | 4000*2300*2300mm |
Weight (T) | 1.5 | 2.2 | 3.0 | 4.0 | 8.0 |
Power(KW) | 3.0kw | 3.5kw | 4.0kw | 4.8kw | 7.6kw |
Rated Voltage(V) | 380V | 380V | 380V | 380V | 380V |
Competitive Advantage:
1.We have 1 year warranty for all our machines and engineers are
overseas available to install and adjust for you.
2.If our client has some question about the machine, we will
provide our instant service to solve the problem.
3.We are the trading company and has our own factory, the quality
of our machine is very reliable and controllable, thus, we can
guarantee our good quality.
4.We have business relationship with many countries such as Europe,
America, Africa, Middle East, Southeast Asia and so on, and we are
honored with our turnkey project.
General Information
Design Ability: | All the machines designed by CAD |
Manufacturing Ability | Mechanical parts: High quality stainless steel,processed by CNC |
Reliability | Electrical parts from world famous brands |
Professional | Focus on beverage and pharmaceutical packing machines Exported to over 50 countries with good reputation 10 years Alibaba Golden supplier without complaint |
Good Service | Service include complete production line design, manufacturing,
on-site installation & aftersales maintenance. |
Export Experience | Exported to over 45 countries, with good reputation. |
Profession on Export | Authorized import & Export licence. |
Our Company
Zhangjiagang Reliable Machinery Co., Ltd is specialized in beverage
production line as well as water treatment system. We are one of
the companies engaged in manufacturing liquid filling and packing
equipment in China.
Our products include: Liquid filling machines
(carbonated drink,water, fruit juice/tea, oil, alcohol, plant protein drink, etc.),
--- Barreled filling line (3-5 gallon)
--- Water treatment machines,
--- Labeling & packing machines,
--- semi-automatic/full automatic bottle blow molding machines,
--- and injection molding machines.
Why choose us?
1. Small profits and quick returns is our business policy, so the
drinking water bottle filling machine is worth every cent.
2. We focus on advanced supply chain management, which can ensure
the raw materials are with good quality and competitive price.
3. Workers, engineers and boss of our company have spent more than
20 years in beverage machinery industry,so they have rich
experience to provide Turn Key project Service.
4. There are several engineers available to oversea service, the
salary per day is cheap. As long as our customers need them, they
can leave for your country as soon as possible, our principle to
make our production line always runs normally.
5. We can update the production status for our customer once per
week, our target is to let our customer receive good service
