Full Auomatic Glass Bottle Washing Filling Capping Machine
Performance characteristics:
This machine with capacity 6000bph, is mainly used for washing,
filling and capping glass bottles, adopts advanced man-machine
interface, PLC control, frequency conversion stepless speed
regulation and other automatic control technology, with no bottle
no open valves, no stamps; no cap no operation, and other security
protection. It use high-precision mechanical filling valve, with
cylinder liquid level and the back pressure controlled by a
variable signal proportional. Fast, stable, accurate, to be vacuum
one at a time.
Automatic Glass Bottled Carbonated Drink Filling Machine is
designed for different kinds of soda drinks with different gas
content. The machine is intergreted with washing, filling, capping
the glass bottles, 3 functions all in 1 body. The rotary design
allows the capacity reach up to 6000BPH with stable and steady
operation.
This glass CSD filling machine uses mechanical filling valve, with
cylinder liquid level and the back pressure controlled by a
variable signal proportional. It is Fast, stable, and accurate, to
be vacuum one at a time.The nozzle is a plum-like structure can
wash every corner of the sidewall and bottom to make the bottle
clean.
Stainless steel plunger and mechanical stirring gland-type magnetic
reasonable cap to ensure that the gland is healthy and reliable.
Hopper and the cap taking- cover, capping transmitted by magnetic.
The capping station is reliable and automatic unloading, reducing
the rate of broken bottles.
Machine Details:
Washing part
1.The glass bottle washing filling capping machine is a rotary
bottle washing machine, it adopts water spray to clean the bottle.
2.Using company original tilting bottle clip, bottle clamp stuck
bottleneck, avoid the traditional bottle on rubber clip to block
the bottle thread parts may be caused by the pollution.
3.The rotary disk is fully made of SUS304 stainless steel, health
and durable. |  |

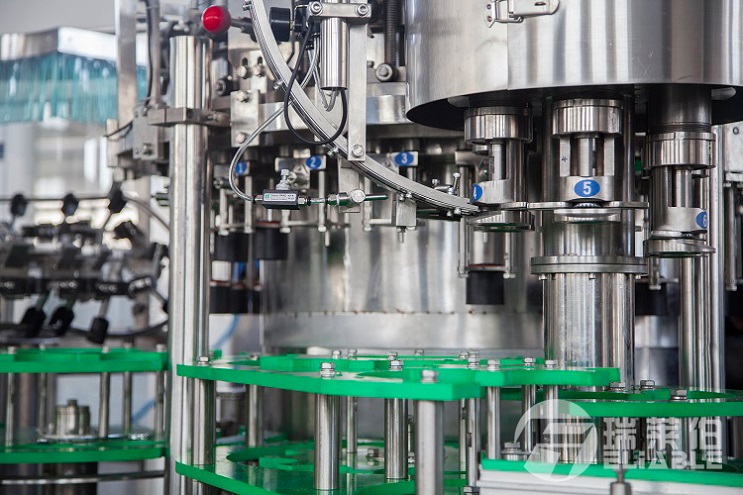

 | Filling part
Specially designed according to the liquid feature, and the filling
part is designed to be twice pre-evacuation.
The filling part is made up of main liquid pipe, rotating cylinder
bearing base, filling cylinder fulcrum loop, beer tank, filling
valve, filling cylinder pipe, control loop device, ascending
device, the distributor, height adjusting control, stimulating
bubble arm, vacuum system, etc. |
Capping part
The capping machine is made up of cap holder, capping slideway,
capping upper part, capping lower part, elevating part and
anti-circling column.
After the bottle is transmitted from the filling machine, the
capping nozzles have been fed with a bottle cap. The capping
nozzles moves downwards the bottle under the capping platform
driven by cam guideway. |  |
|
| Model | CGF-C/S12-12-6 | CGF-C/S18-18-6 | CGF-C/S24-24-8 | CGF-C/S32-32-8 |
| Production capacity(500ml) | 2000BPH | 4000BPH | 6000BPH | 8000BPH |
| Filling precision | ≤±5mm(liquid level) |
| Suitable bottle specification | Bottle diameter Commonly 50-100mm (can adjustable) Bottle height Commonly 150-310mm(can adjustable) |
| Bottle type | Glass |
| Machine material | Food stage SS304 OR SS316 |
| Rinsing pressure | 0.2-0.25Mpa |
| Filling way/principle | weight filling |
| Control System | SIMENS PLC+ TOUCH SCREEN |
| Features | No Bottle No Filling No Bottle No Capping |
| Suitable cap | Cork,crown cover,aluminum screw cap28 or 30 mm |
| Overall dimensions (mm) | 2130*1700*2350 | 2450*1800*2350 | 2780*2200*2350 | 3600*2650*2350 |
| Certificates | CE / SGS / ISO 9001/ COC |
Characteristics
1, This machine is using high-strength stainless steel bottles of
spring-loaded folders, to ensure a stable reversal of the glass
bottles. The nozzle is a plum-like structure can wash every corner
of the sidewall and bottom to make the bottle clean.
2, This machine with spring-type mechanical lifting equipment to
upgrade glass bottles, large bearing support floundering in the vat
and use of guide-rod in the orientation of the structure, there are
pre-cover features.
3, Using high-precision mechanical filling valve, with cylinder
liquid level and the back pressure controlled by a variable signal
proportional. Fast, stable, accurate, to be vacuum one at a time.
4, Stainless steel plunger and mechanical stirring gland-type
magnetic reasonable cap to ensure that the gland is healthy and
reliable. Hopper and the cap taking- cover, capping transmitted by
magnetic. The capping is reliable and automatic unloading, reducing
the rate of broken bottles.
