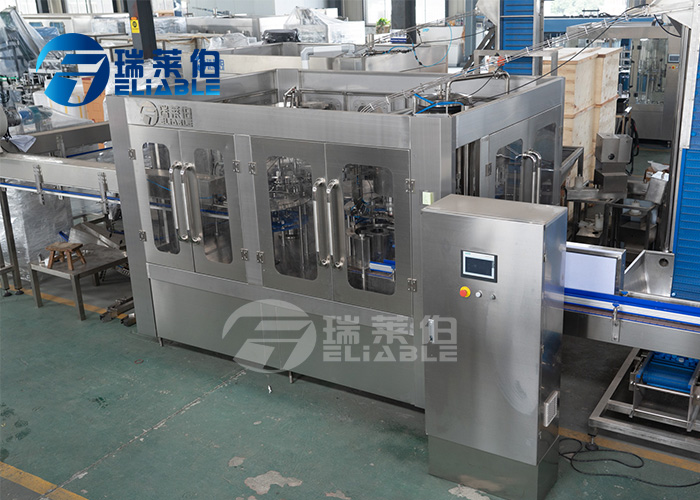

6000BPH China Top Automatic Water Bottling Machine / Mineral Water
Plant
Decription
1.The machine is mainly used in the water production line. The
three functions of bottle wash, fill and seal are composed in one
body of the machine. The whole process is automatic. The machine is
used in filling juices, mineral water and purified water in bottles
made of polyester and plastics. The machine can also be used in hot
filling if being installed with temperature controlling device.
2.The handle of the machine can be freely and conveniently turned
to adjust the machine to fill various types of bottles. The filling
operation is faster and more stable because the micro pressure
filling operation of the new type is adopted.
3.PLC is adopted to control the machine to run automatically while
a transducer is used in the bottle -entering chains to adjust
speeds and coordinated with the transducer of the main machine to
make the operations of moving bottle forward steadily and reliably.
It is convenient to operate with higher automation because every
part of the machine is inspected to run with photo electricity.
4.On the bases, the filling parts of the machine can be changed
into filling methods of lower vacuum.
Advantages
1. The body and all pipes are made of stainless steel 304.
2. The parts of door and frame are all made of stainless steel 304
combined with nano glass to reduce the chance of glass damage
during transportation.
3. The red emergency stop button is more secure.
4. The electric box is inside the filling machine, saving the
factory space.
5. An external air box is additionally provided, which is
convenient for observing the air volume outside and more neat.
6. The air fan is equipped with a filter screen to filter air
impurities first.
7. The flat cap loader reduces the occurrence of back cover.
8. The brand of the switch is Autonics, and all other electrical
brands are Siemens and Schneider.
| Product description: |
| 1) This is a turnkey project for drinking water treatment. We can
offer you a whole solution from raw water treatment, through
sterilization to packaging. |
| 2) Our company can design customized mineral water production lines
in accordance to the customers' requirements. The production
capacity varies from 500L/h to 10000L/h according to customer's
need |
3) Water treatment system -RO system:
Raw water-Raw water tank-Water pump-Silica sand filter-Active
carbon filter-Sodium ion exchanger-Precision filter-Reverse
Osmosis-Mixing tower-Water tank-Pump |
4) Filling and Packing:
Bottle uploader-Air conveyor-Filling Monoblock(3-In-1
machine)-Conveyor-Light check-Blow dryer-Labeling machine-Code
sprayer-PE film packing machine-Pallet stretch wrapper-Stock |
5) PET bottle making:
PET granules-Injection molding machine-PET prefomrs-PET bottle blow
molding machine-PET bottles |
Main specification data:
| Model | CGF12125 | CGF18186 | CGF24248 | CGF323210 | CGF404012 | CGF505012 | CGF606015 | CGF808020 |
Number of washing, filling and capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 | 80-80-20 |
Production capacity(600ml) (B/H) | 4000 | 5000-6000 | 10000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 | 35000-40000 |
suitable bottle specification(mm) | φ=50-110=170 330-2000ml |
Washing pressure (kg/cm 2 ) | 2-3 |
| Motor power(kw) | Main motor 2.2kw | Main motor 2.2kw | Main motor 3kw | Main motor 5.5kw | Main motor 7.5kw | Main motor 11kw | Main motor 15kw | Main motor 19kw |
Overall dimensions (mm) | 2400×1650 ×2500 | 2600×1920 ×2550 | 3100×2300 ×2800 | 3800×2800 ×2900 | 4600×2800 ×2900 | 5450×3300 ×2900 | 6500×4500 ×2900 | 76800×66400 ×2850 |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | 15000 |
