PET Bottle Juice Processing Line Turnkey Project 10000BPH For 500ML
Bottles
Quick Details
Model | Reliable Brand CGFR 24-24-8 |
Material | Stainless steel 304 food stage , long life time and high quality. |
Usage | For Filling Kinds of Non carbonated juice , such as apple juice ,
orange juice, coffee, green tea ,black tea, etc. |
Capacity | Based on 500ml bottles, it can produce about 10000 bottles per
hour. |
Bottle size | 0.3~2.0L PET Bottles. |
Processing | Raw water tank → water pump →Silica sand filter →Active carbon
filter→ Softener→ Precision filter→ Reverse Osmosis→ Ozone generator with Ozone generator →Pure
water tank → Preparing System (Syrup Melting Tank-Juice Blending Tank-Double
Heads Beverage Filter Vacuum deaerator-Homogenizer Machine-UHT Sterilizer-Syrup &
Beverage Pump-Pipes and valves) →Filling System(Washing,Filling,Capping 3 in 1+Light Check)
→Bottle labeling machine →Bottle packing machine |
Main part brand | Mitsubishi, OMRON, SIEMENS . |
Technical Parameters
Model | CGFR8-8-3 | CGFR16-12-6 | CGFR18-18-6 | CGFR24-24-8 | CGFR32-32-10 |
Rinsing Head No | 8 | 16 | 18 | 24 | 32 |
Filling Head No | 8 | 12 | 18 | 24 | 32 |
Capping Head No | 3 | 6 | 6 | 8 | 10 |
RatedCapacity (500ml) | 2000BPH | 4000BPH | 7000-8000BPH | 10000-12000BPH | 12000-15000BPH |
Weight | 1.5T | 2.2T | 3.0T | 4.0T | 8.0T |
Power(KW) | 3.0kw | 3.5kw | 4.0kw | 4.8kw | 7.6kw |
Rated Voltage | 380V | 380V | 380V | 380V | 380V |

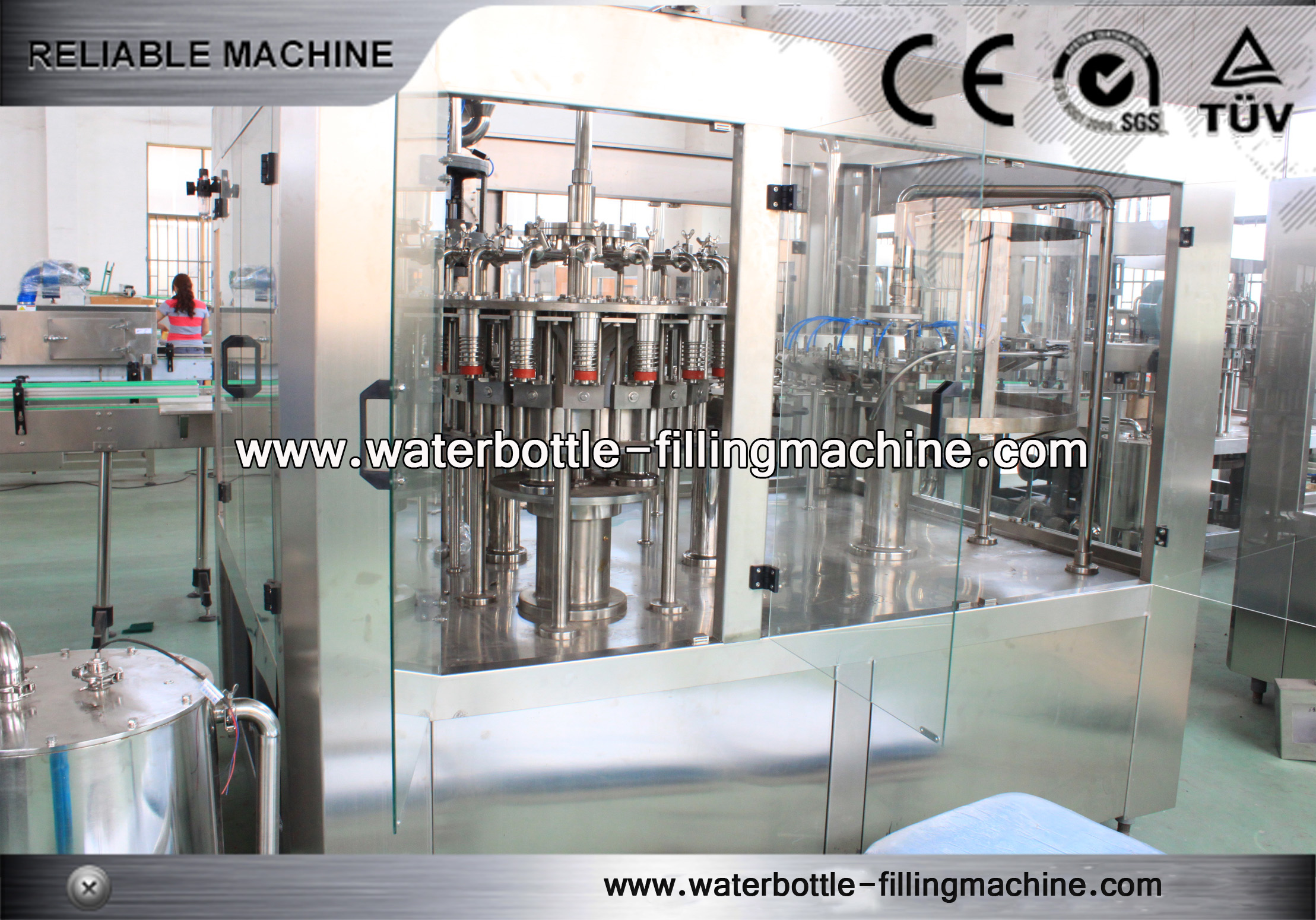

Picture of 3 in 1 Juice Filling Machine
Advantages Of Our Products
1. Each bottle juice filling machine element that contacts with the
liquid is made of high quality Stainless
steel 304,
2. The machine adopts bottle neck holding transmission technology
to realize fully automatic rinsing ,filling
and capping.
3. Most elements of the electrical system use famous international
brand, such as SIEMENS brand.
4. The filling machine obtains the advantages of good abrasive
resistance ,high stability ,low failure rate,
etc. The quality of the equipments reaches the international
advanced level.
5. Advanced technologies, human-machine interface touch screen and
PLC program control are adopted
in this water filling machine.
6. Nozzles in the grab can guarantee the complete wash of the
interior of the bottle.
7. This filling machine is easy to operate and save the cost of
workers.
Our Service
We have 1 year warranty, and lifetime maintenance.
Within one year, if there is some accessory going wrong, we will
send you the accessory at once, free of
charge.
1). Within one month, if the machine is of any big fails, we will
send you a new machine.
2). Within one year, if you send back the equipment for repair, we
will be responsible for the repair,
including the changes of accessories; Both of them are free of
charge.
3). After one years, we offer to repair the machine, but we quire
for the cost of the changed parts, not for
manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions from our technical department,
we can supply on-line service Or we can
send professional engineers to help you debug them.
