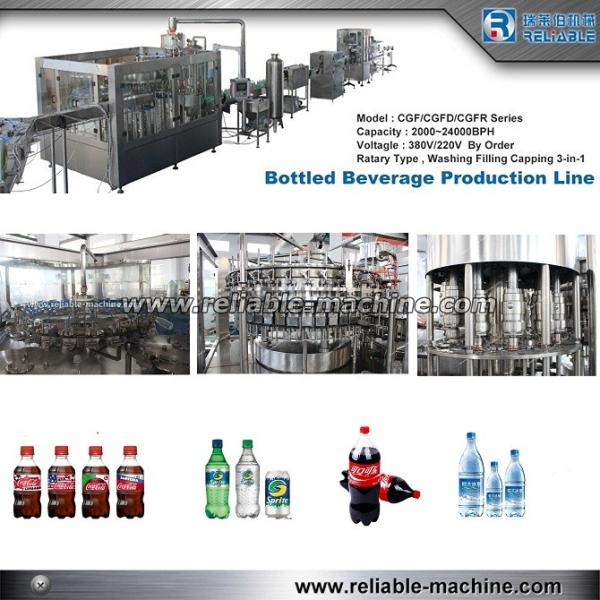

Model

Reliable Brand CGFD series

Material

Stainless steel 304 food stage , long life time and high quality.

Usage

For filling kinds of carbonated soft drinks, such as soft drink , soda water, gas water , sparkling water etc.

Capacity

Based on 500ml bottles, it can produce about 1200~12000bottles per hour.

Bottle size

0.3~2.0L PET Bottles.

Processing

Raw water tank → water pump →Silica sand filter →Active carbon filter→ Softener→ Precision filter→ Reverse Osmosis→ Ozone generator with Ozone generator →Pure water tank → Processing System(Syrup Melting Machine-Syrup Pump-Syrup Filter-Mixing Tank-Beverage Pump-Double Filter-Beverage Mixing Machine-Water Chiller-Pipes and valves-Control Cabinet)→Filling System(Washing,Filling,Capping 3 in 1+Light Check) →Bottle labeling machine →Bottle packing machine

Main part brand

Mitsubishi, OMRON, SIEMENS .

Model

CGFD

8-8-3

CGFD

16-12-6

CGFD

18-18-6

CGFD

24-24-8

CGFD 32-32-10

Rinsing Head No

8

16

18

24

32

Filling Head No

8

12

18

24

32

Capping Head No

3

6

6

8

10

RatedCapacity

1200-1500BPH

2500BPH

3500-4000BPH

7000-7500BPH

8000-10000BPH

Weight(Kg)

2T

2.2T

3.0T

4.0T

8.0T

Power(KW)

3KW

3.5kw

4.0kw

4.8kw

7.6kw

Rated Voltage(V)

380V

380V

380V

380V

380V

Brief Introduction

Zhangjiagang Reliable Machinery Co., Ltd.Is a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines.We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China

Main Products

Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.

Good Service

we also supply technique consultation, factory construction design plan, equipment installation and adjustment, technology training and other after-sales services.Now our products are exported to over ten countries and regions, including Southeast Asia, Russia, the Commonwealth of the Independent States, Western Asia and South Africa.
