Small Scale Drinking Water Bottling Factory , Energy Saving With
PLC Control
Specifc product can be customized by your demand!!! If you send the inquiry to us , please kindly inform us the filling capacity, bottle size, bottle type or any other things, it would be a great help for us to know your
requirement much easier! Thank you in advance! Sincere services for
you. |
Machine technology datas of Automatic 3-in-1 pure water filling machine:
-Model :CGF18-18-6
-Capacity:6000BPH/500ML
-Application Bottle :200ml to 2000ml
- Type of Bottles: PET Bottles of various shapes
- Bottle Height: 150-340(mm)
- Bottle Diameter: φ50-110(mm)
- Filling Temperature: ambient temperature
- Filling Principle: Gravity Filling
- Filling Product: mineral water, purified water, flavor water and
non-carbonated drink
The other technology datas of some we can provide are showing you
| Model | CGFA 8-8-3 | CGFA 12-12-6 | CGFA 24-24-8 | CGFA 32-32-10 | CGFA 40-40-12 | CGFA 50-50-15 |
| Washing No | 8 | 12 | 24 | 32 | 40 | 50 |
| Filling No | 8 | 12 | 24 | 32 | 40 | 50 |
| Capping No | 3 | 6 | 8 | 10 | 12 | 15 |
| Capacity(500ml) | 2000BPH | 4000BPH | 10000BPH | 12000BPH | 16000BPH | 24000BPH |
| Installed Capacity | 2.0 kw | 3.5 kw | 4.8kw | 7.6kw | 8.3kw | 9.6kw |
| Overall size | 2000*1600 *2400 | 2450*1800 *2400 | 2900*2100 *2400 | 4100*2400 *2400 | 4550*2650 *2400 | 5450*3210 *2400 |
| Weight | 2.0T | 2.2 T | 4 T | 8 T | 12 T | 18 T |
Using fileds of Automatic 3-in-1 pure water filling machine:
This water filling machine is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery
and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing
bottle, filling and sealing, it can reduce the materials and
Outsiders touch time, improve the sanitary conditions, production
capacity and economic efficiency.
Advantages of Automatic 3-in-1 pure water filling machine:
- high quality stainless steel 304. If need, SUS316 can be
customized.
- No bottle no washing,No bottle no filling, no bottle no capping.
- Under the condition that the bottle neck size is the same, only the
output star wheel needs to be changed if bottles are different. It
improves the efficiency a lot.
- Most elements of the electrical system use famous international
brand, such as Mitsubish, Omron brand.
- Good abrasive resistance,high stability,low failure rate.
- The advanced PLC system and frequency conversion and speed control
system.
- We are the water filling machines manufacturers from China.
How to work?
Full Automatic 3 in 1 rotary washing filling capping system.
The bottles are transported by the air conveyor and flat conveyor.
• Washing part
• Filling part
• Capping part

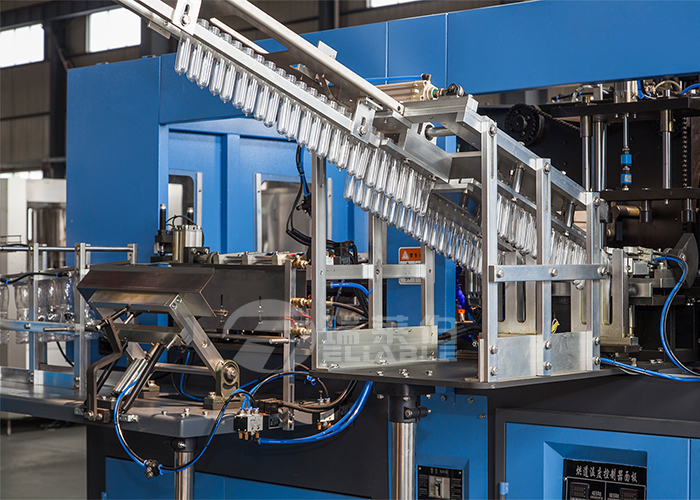

Other machine; blowing machine
