Fully Automatic Bottle Blowing Machine 5 Gallon 100 Bottles Per
Hour
Fully Automatic Bottle Blowing Machine--Technical Parameters
TYPE | ITEM | UNIT | PARAMETER |
Container | Product material | / | PET |
Max. Container volume | L | 20 Liter (1cavity) |
Theoretical output | PCS/H | 5 gallon:100, |
Prefom length | mm | 15-460 |
Preform inner diametrt | mm | ￠15-200 |
Mouding | Max. mould plate? Dimenstion(L*W) | mm | 420*500 |
Max. mould thickness | mm | 400 |
Clamping force | KN | 330 |
Mould opening stroke | mm | 330 |
Machin size and
weight | Main machine(L*W*H) | cm | 155*82*200 |
Main machine weight | T | 1 |
Heater (L*W*H) | cm | 242*65*160 |
Heater weight | T | 0.38 |

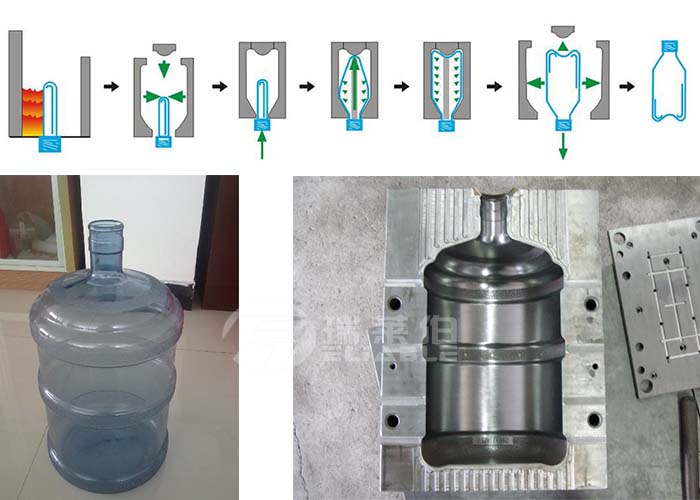

The Process of Bottle Blowing Machine
Specifications:
Automatic Plastic Molding Machine for PET Bottle
1.Low speed and big torque hydralic
2.Double cylinder balance injection
Our Injection molding machine adapt the fast & reliable linear
motion, equiped with servo control energy saving system, with our
experienced technology,we are dedicated to provide the best
solutions for the precise injection products for you!
Clamping Unit:
1. Optimized Platen Design with high rigidity and enlarged space
between tie bars
2. Euromap-based Platen Layout with both T-slot & tap holes,
locating design in moving platen to better suit various molds
3. New ejection system design with longer ejection stroke, bigger
space and better rigidity
4. Hydraulic drivien gear-type mold height adjustion mechanism
5. Relocation of mechanical safety interlock for easier operation
6. linkage structure for front connecting rod increases
connectingrod's strength greatly, as well as the whole clamping
unit's rigidity & accuracy.
Injection Unit:
1. High Quality Linear Motion Guide ensure the smooth & accuracy of
injection process
2. High Speed & Pressure injection structure can improve the
injection speed
3. Twin nozzle cylinder ensures more even & stable structure
4. Specilized screw barrel design for various appliance
Hydraulic System:
1. The double proportional compound valve control system pressure &
flow, highly sensitive & stable
2. Imported high quality Pump, low in noise, long in lifespan &
stable in performance
3. World-famous servo hydraulic system optional, better performance
in lower noise & energy saving
4. The precise feedback control of servo system to the pressure &
flow, with higher sensitivity & more accurate repeatability
precision
5. High performance hydraulic valve, less failure, fast switch,
convenient maintenance
6. Low pressure mold protect system, which is more suitable for the
precise mould
7. Greese & lubrication oil in dependent lubrication system can
lubricate everywhere in the best situation
Electrical System:
1. Control by double CPU, the system HMI use X86 300MHz technical
grade display. The system employees a RISC 140MHz microprofessor,
with high speed, noise-immunity, fan-less and lower power
consumption, independent control structure improve the stablity of
control
2. 8.4" display screen with resolution 800*600, user friendly
screen & optional choose of language
3. Equiped with USB(2.0) port & ethernet(100-base T) ports
4. 32 Points input & output, entendable and trouble spot can be
replaced easily
5. Linder transducer's resolution is 1/65535, more precise in
control
6. 120 technological parameters access can be stored & uploaded
with an ordinary USB drives
7. Injection End and temperature tracking is curve display, dynamic
recorder parameter is modified, dynamic warningis exhibited, all
these make the operation more convenient.
Servo Controller Part:
1. High Precise Control
The servo system can control the machine's pressure, speed &
location precisely, make sure that the error of accurate
repeatability precision for the shot measurement is <0.3%
2. High sensitive response
Because the motor vector is matched with the controller accurately,
it only takes 0.5sec. inputing the number from 0 to max. Compared
with other traditional hydraulic injection molding machine, AF
series is more faster in speed with shorter cycle time and high
efficient in production
3. Low noise
Compared with traditional fixed pump & variable pump system, the
noise is 1/10 lower under normal circumstance, more suitable for
sealed dustless workshop
4. Energy Saving
Overall efficiency is 10% more & driving capacity is 18% more than
common machine. This series can save 30-80% energy, and achieve
first-class energy efficency
5. Water cooling saving
The system condition prevent high pressure uploading without any
power output, leads to the water cooling saving.
Our Service
Free 2D & 3D Bottle Design
Our Machine can fit bottle size from 100ml ~ 2000ml Bottle / 3L
~10L Bottle 10~25L Bottle
And three size of bottle fitting parts for free .
Free Layout Plant Design
Every Factory are different and unique , We will special design the
layout according to your factory , supply the best beverage package
solution for you
Engineer Available Installation Service
Our engineer can go to your factory to install the machine, give
you the operating manual and train your employee until they can
operate the machine well.
