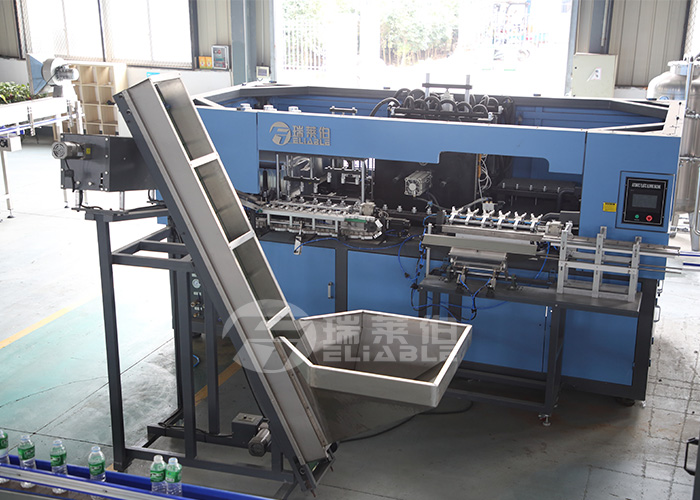

Full Automatic Servo Motor Power SS304 PET Bottle Blowing Machine
Machine features
A. Adopt advanced imported microcomputer control system with stable
performance;
B. The conveyor automatically feeds the blanks;
C. The infrared lamp tube is used for heating, which has strong
penetrating power. The preform is heated by rotation, and the track
revolves, heating is uniform, fast and reliable; the width and
height of the lamp tube and reflector in the heating zone can be
adjusted to suit bottles of different structures The heating of the
blank is equipped with an automatic temperature exhaust device to
ensure the constant temperature of the drying tunnel;
D. Each mechanical action has a safety self-locking device, when a
process fails, the program will automatically switch to a safe
state;
E. The action is driven by a servo motor and does not use an oil
pump. It has the advantages of pollution-free, low noise and fast
speed; It adopts high pressure and double-boom link for mold
locking, which has strong mold locking force;
F. There are two methods of operation: manual and fully automatic;
safe, reliable and unique valve position design, which makes the
gas path clear at a glance;
G. The production process is fully automated and has the advantages
of low investment, high efficiency, convenient operation, simple
maintenance and safety.
H. The bottle body is free from pollution, and the scrap rate of
the bottle is less than 0.0001%
I. Servo clamping, servo stretching, servo transmission. The servo
stretching system has the advantages of uniform stretching speed,
strong stretching force, and good product molding. The use of full
servo has high efficiency and energy saving, power saving, high
output, and more stable production.
Quick Details
| Model | RM-6000 Plastic Bottle Making Machine |
| Productivity | Depend on bottle design | 5800-6000PCS/H |
| Product type | Body diameter | 20mm-38mm |
| Height | 50mm-350mm |
| Neck diameter | 15mm-38mm |
| Mold | Cavity | 6 cavities |
| Mold thick | 240mm |
| Mold | 500*500mm |
| Main machine power | Electrical source power | 380v 3Phase /220v 3Phase 50/60HZ |
| Rated Power | 49kw |
| Really use power | 14kw |
| Air source | LP air compressor | 1.6m3/min 1.0MPa 1set (15KW) |
| HP air compressor | 1.0m3/min 3.0MPa 2sets (each set 11KW) |
| Air dryer | 2.0m3/min 3.0MPa 1set |
| Cooling water | Cooling water | 15L/min |
| Size | L*W*H | 1908*1858*1920mm |
| Weight | 3600kg |
| preform unscrambler | L*W*H | 2000*950*2480mm |
| Weight | 250kg |
| Resin available | | PET |
Mechanical configuration
Man-machine interface: Taiwan Delta
Controller: Taiwan Delta
Electromagnetic valve: Taiwan Airtac, South Korea PMC, Germany
Festo, etc.
Automobile cylinders: Airtac from Taiwan, SMC from Japan, Festo
from Germany, etc.
Sensor: Korea Autonics
Relay: Japan Omron, France Schneider
Note: All our accessories are made of international high-tech
products
FAQ
Q1: Are you a trading company or a manufactory?
A1: We own a factory ourselves, and we can assure the quality we
manufactured.
Q2: What’s your guarantee or the warranty of the quality if we buy
your machines?
A2: We offer you high quality machines with high quality
after-service. Also we have 2 years warranty of the spare parts,
free of charge.
Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed both
side.
Q4: How can I install my machine when it arrives?
A4: We will send our engineer to your side as soon as you get all
your machines ready , for testing and teaching your technicians how
to run the machines.
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare
parts list for your reference.
What service Reliable Machinery Co.,Ltd can offer you ?
Technological upgrades
To keep our machines and bottling lines very reliable over time,
but above all to increase performance, we offer our customers the
option of technological upgrades to make their machines as
future-proof, efficient and productive as those of the latest
generation, as well as providing support to develop
state-of-the-art containers.
Production Training
Suitable training for the staff using our systems ensures they will
be operated properly and will maintain the level of performance
stipulated in the contract.
Advanced technology and multimedia training tools, combined with
new concept teaching methods, are the fundamental elements used by
RELIABLE Customer Service to guarantee proper training for machine
operators and maintenance technicians.
Engineer Plan
Through a comprehensive inspection, our most experienced and
skilled staff can provide the factory layout, enabling RELIABLE's
customer service department to provide the type of maintenance that
best suits them to maximize efficiency. The engineer can go to the
customer's factory to debug and install the machine, train the
customer's engineer, and give the greatest help, so that the
customer can quickly start and run the machine.
Spare Parts
The spare parts catalogue is precise and easy to consult, and is
available in the manuals supplied as an integral part of the
machine. All the articles are described and identified by a code to
facilitate communication between customers and warehouses.
Technical Support
* RELIABLE On-Line: Reliable's state-of-the-art technology for
remote technical support and system data acquisition. For us it
will be
just like having the machine right in front of us, wherever in the
world it may be.
* Help Desk available 24/7 in your own language, so that we are
there whenever you need us.
