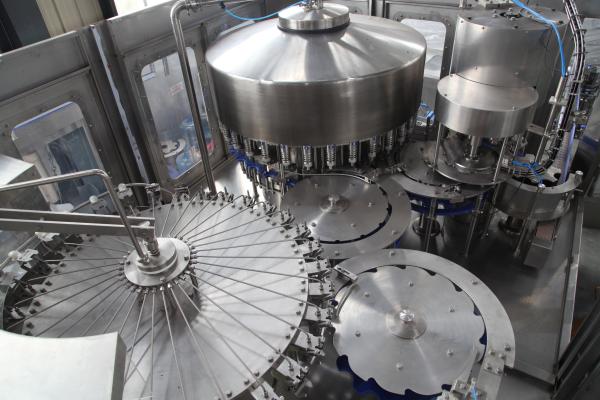

PET Spring Water Bottle Filling Machine 3 In 1 Washing Filling
Capping
Main Introduction :
This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is
used to produce polyester bottled mineral water, purified water,
alcoholic beverage machinery and other non-gas beverage machinery.
Beverage Machinery can finish all the process such as washing
bottle, filling and sealing, it can reduce the materials and
Outsiders touch time, improve the sanitary conditions, production
capacity and economic efficiency.
Quick Detail:
| Name: Full Automatic PET Bottle Filling Machine For Small Mineral Water
Machines |
| Capacity: 12000-15000bph |
| Material: Food stage stainless steel |
| Control: PLC & touch screen control |
| Suitable Bottle: PET bottle |
| Bottle Volume: 0.3-2L |
| Dimension: By order |
| Function: washing filling capping 3 in 1 |
| Technology: Advanced |
| After-sales service provided: Engineers available to service machinery overseas . |
Description:
Washing heads.
<1>Into bottle way is air conveyor direct connection with
Bottle dial .
<2>All 304/316 stainless steel rinse heads, water spray style
inject design, more save water consumption and more clean .
<3>304/316 Stainless steel Gripper with plastic pad, ensure
minimal bottle crash during washing
Filling heads.
<1> SUS304/316 high precision filling nozzles
<2> Filling volume is adjustable in fine rank, same liquid
level after filling
<3> All SUS304/316 contact parts & water tank, fine polish,
without death corner, clean easily
<4> SUS 304/316 filling pump
Capping heads.
<1> Place and capping system, electromagnetic capping heads,
with burden discharge function, make sure minimum bottle crash
during capping
<2> All construction are made of SUS304/316
<3> No bottle no capping, fully automatic
<4> When lack of bottle, it can stop automatically
Air conveyor.
Air conveyor is fixed on the floor, with fan installed on the top.
Air filter is positioned at every entrance of air fan to prevent
dust blown into bottles. Bottles are held on the neck in the
conveyor and transported into filling machine by blowing power.
All of them are made of SUS 304 /316.
Flat conveyor.
1/Energy saving. High efficient. Adapt to everyone customer factory
layout
2/Special lubrication system, keep products clean, health, safety
3/Extended service life, better use experience
4/Electric eyes design can keep whole line running safety and
quickly
Specifications:
Model | CGF8-8-3 | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
Rinsing Head No. | 8 | 16 | 18 | 24 | 32 |
Filling Head No. | 8 | 12 | 18 | 24 | 32 |
Capping Head No. | 3 | 6 | 6 | 8 | 10 |
RatedCapacity (BPH) | 2000 | 4000 | 7000-8000 | 10000-12000 | 12000-15000 |
Overall Size (MM) | 1900*1420*2000mm | 2200*1600*2300mm | 2450*1900*2300mm | 2750*1180*2400mm | 4000*2300*2300mm |
Weight (T) | 1.5 | 2.2 | 3.0 | 4.0 | 8.0 |
Power(KW) | 3.0kw | 3.5kw | 4.0kw | 4.8kw | 7.6kw |
Rated Voltage(V) | 380V | 380V | 380V | 380V | 380V |
Competitive Advantage:
| 1 | We have 1 year warranty for all our machines and engineers are
overseas available to install and adjust for you. |
| 2 | If our client has some question about the machine, we will provide
our instant service to solve the problem. |
| 3 | We are the trading company and has our own factory, the quality of
our machine is very reliable and controllable, thus, we can
guarantee our good quality. |
General Information
Design Ability: | All the machines designed by CAD |
Manufacturing Ability | Mechanical parts: High quality stainless steel,processed by CNC |
Reliability | Electrical parts from world famous brands |
Professional | Focus on beverage and pharmaceutical packing machines Exported to over 50 countries with good reputation 10 years Alibaba Golden supplier without complaint |
Good Service | Service include complete production line design, manufacturing,
on-site installation & aftersales maintenance. |
Export Experience | Exported to over 45 countries, with good reputation. |
Profession on Export | Authorized import & Export licence. |
Spare Parts Show
| No | Name | Qty |
| 1 | Sliding fork | |
| 2 | Spring | |
| 3 | Plug&pipe for water separator | |
| 4 | Seals for metal pipe | |
| 5 | Seals for filling valve | |
| 6 | Gaskets for bottle neck | |
| 7 | O rings for liquid tank | |
| 8 | Metal ball | |
| 9 | O rings for capping head | |
| 10 | Conveyor chain | |
| 11 | Conveyor wheel | |
| 12 | Bearing | |
| 13 | Bearing sea | |
| 14 | Black wheel | |
| 15 | Mid relay | |
| 16 | Thermorelay | |
| 17 | Speed adjust | |
| | |
| | |
