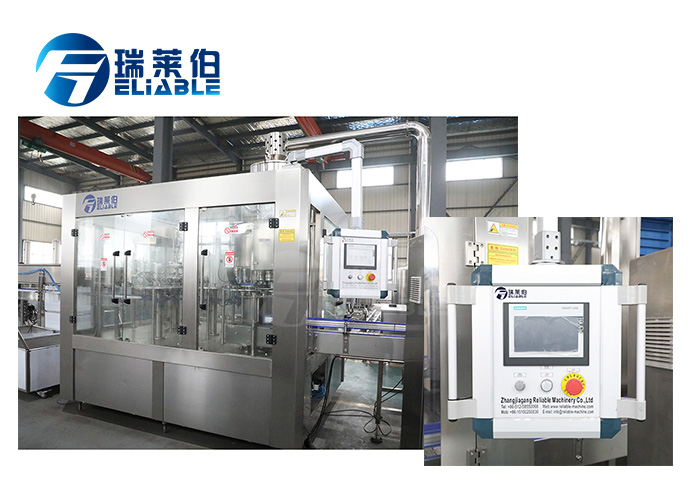

CE Certification Pure Water Bottle Filling Machine Fully Automatic
Long Life Time
Quick Detail:
| Name: CE Certification Pure Water Bottle Water Filling Machine Fully
Automatic |
| Capacity: 12000-15000bph |
| Material: Food stage stainless steel |
| Control: PLC & touch screen control |
| Suitable Bottle: PET Plastic bottle |
| Bottle Volume: 300ml-2000ml |
| Dimension: Customized |
| Function: washing filling capping 3 in 1 |
| Technology: Advanced |
| After-sales service provided: Engineers available to service machinery overseas . |
Description:
Washing heads.
The bottle feeding method is that the air conveyor directly
connects the bottle dial. All 304/316 stainless steel rinse heads,
water jet spray design, save water consumption, cleaner .304 / 316
stainless steel clamp with plastic pad to ensure bottle
minimization during washing.
Filling heads.
304/316 stainless steel high precision filling nozzle. The filling
volume is adjustable, fine grade, and the liquid level is the same
after filling. All 304/316 stainless steel contacts and tanks, fine
polished, no dead ends, easy to clean 304/316 stainless steel
filling pumps.
Capping heads.
The placement and capping system, the electromagnetic capping head,
has a load discharge function to ensure minimal bottle collapse
during capping. Full 304/316 stainless steel construction. No
bottles are not covered. Stop automatically when the bottle is
missing.
Air conveyor.
The air conveyor is fixed to the floor with a fan mounted on the
top. Air filters are located at each inlet of the fan to prevent
dust from blowing into the bottle. The bottle is held on the neck
of the conveyor and delivered to the filling machine by blowing
power. All made of stainless steel SUS 304/316.
Flat conveyor.
Energy saving. high efficiency. Adapt to the customer's factory
layout. Special lubrication system to keep products clean, healthy
and safe. Extended service life. The electric eye design makes the
whole line run safely and quickly.
Specifications:
Model | CGF8-8-3 | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
Rinsing Head No. | 8 | 16 | 18 | 24 | 32 |
Filling Head No. | 8 | 12 | 18 | 24 | 32 |
Capping Head No. | 3 | 6 | 6 | 8 | 10 |
RatedCapacity (BPH) | 2000 | 4000 | 7000-8000 | 10000-12000 | 12000-15000 |
Overall Size (MM) | 1900*1420*2000mm | 2200*1600*2300mm | 2450*1900*2300mm | 2750*1180*2400mm | 4000*2300*2300mm |
Weight (T) | 1.5 | 2.2 | 3.0 | 4.0 | 8.0 |
Power(KW) | 3.0kw | 3.5kw | 4.0kw | 4.8kw | 7.6kw |
Rated Voltage(V) | 380V | 380V | 380V | 380V | 380V |
Spare Parts Show
| No | Name | Qty |
| 1 | Sliding fork | |
| 2 | Spring | |
| 3 | Plug&pipe for water separator | |
| 4 | Seals for metal pipe | |
| 5 | Seals for filling valve | |
| 6 | Gaskets for bottle neck | |
| 7 | O rings for liquid tank | |
| 8 | Metal ball | |
| 9 | O rings for capping head | |
| 10 | Conveyor chain | |
| 11 | Conveyor wheel | |
| 12 | Bearing | |
| 13 | Bearing sea | |
| 14 | Black wheel | |
| 15 | Mid relay | |
| 16 | Thermorelay | |
| 17 | Speed adjust | |
| | |
| | |
we provide you with turn-key project solution.
From project design to produce the end product you want.
the machine including: 1) water treatment system. 2) bottle blowing
machine, 3) air compressor system; 4) bottle filling machine 5)
labeling machine 6) date code printer 7) packing machine.
Pre-Sales Service
1) Inquiry and consulting support.
2) give us your request (hour capacity of the production line you
want)
3) we workout the design of the production line
3) View our Factory and make the final contract
After-Sales Service
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas. instal the
production line at site.
