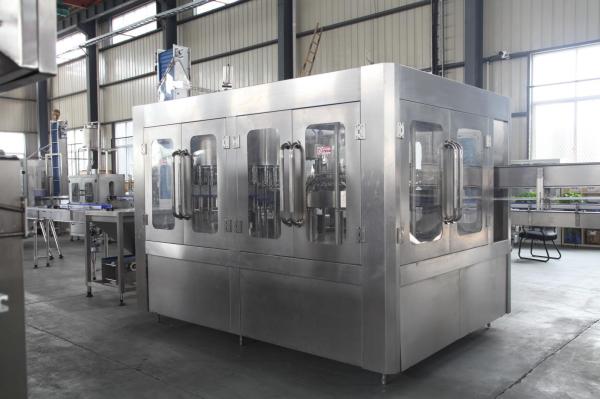

CE Certification Water Bottle Filling Machine PET Plastic Stainless
Steel 306
1. Advanced intelligent operating systemWith PLC software support, the adjustment only needs to set the
target amount on the touch screen, and the device can automatically
increase or decrease to reach the target amount. Color touch
display, all functions such as operation, monitoring, operation
instructions, etc. are completed in the touch screen.
2.Wide application range and convenient adjustment
It is suitable for the filling of most bottle types (especially
shaped bottles), which overcomes the trouble of changing the dial
when the rotary filling machine replaces the bottle type. For the
irregular bottle type which can not be filled by the rotary filling
machine, the machine has Greater advantage.
3.The filling process is closed and pollution-free
The whole machine is fully enclosed and filled in accordance with
national health requirements, achieving hygiene and pollution.
4. Stable filling and rehydration function
Adopting the principle of functional separation, no rehydration is
required during the filling process, and the rehydration process is
not installed, thereby overcoming the instability of the refilling
at the same time of floating filling.
Model No |
CGF8-8-3 | CGF12-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-8 |
Washing No |
8 | 12 | 18 | 24 | 32 |
Filling No |
8 | 12 | 18 | 24 | 32 |
Capping No |
3 | 6 | 6 | 8 | 8 |
Capacity(500ml)bph | 1500-2000
| 3500-4000 | 6000-7000 | 8000-10000 | 12000-15000 |
Power(Kw)
| 2 | 3.5 | 4 | 4.8 | 7.6 |
Application | Drinking Water,Pure Water,Mineral Water,Spring Water and so on. |
User Ambient Conditions | Temperature:10~40℃;Humidity:No dew |
User Electrical Supply Specification | Voltage:220V,380V,3phase;Frequency:50HZ/60HZ or your requirement |
Polyester bottle standard(mm) | bottle diameter φ50-110 ; bottle height 150-340mm;200-2000ml
volume;PET circular or square |
Suitable cap shape | |
Suitable cap size
| 28mm or 30mm Neck for PET Small Bottles |
Detailed Images
⬅Washing Part
Brand: Reliable Machinery
Original: China Mainland , Jiangsu Province , Zhangjiagang City
>> All 304 stainless steel rinser heads, water spray style
inject design, more save water consumption & more clean
>> 304 Stainless steel Gripper with plastic pad, ensure
minimal bottle crash during washing
>> 304 stainless steel washing pump
⬅Filling Part
Brand: Reliable Machinery
Original: China Mainland , Jiangsu Province , Zhangjiagang City
>> 304 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after
filling
>> All 304 stainless steel contact parts & liquid tank, fine
polish, no death corner, easy to clean
304 stainless steel filling pump
⬅Capping Part
Brand: Reliable Machinery
Original: China Mainland , Jiangsu Province , Zhangjiagang City
>> Place & capping system, electromagnetic capping heads,
with burden discharge function, make sure minimum bottle crash
during capping
>> All 304 stainless steel construction
>> No bottle no capping
>> Automatic stop when lack of bottle
⬅Air Conveyor
Air filter is positioned at every entrance of air fan, to prevent
dust blown into bottles. Bottles are held on the neck in the
conveyor and transported into filling machine by blowing power.
