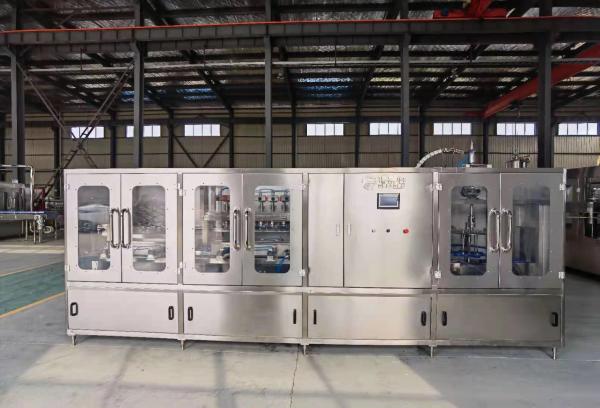

Plastic Bottle Carbonated Soft Drinks Bottling Machine
Soft drinks filler 3-in-1 filling monoblock, combined with rinsing,
filling and capping. It is innovated and designed in the
requirement of carbonated soft drinks and soda water, on the basis
of introducing, digesting and absorbing advanced technology from
Germany and Italy.
The machine is a full-automatic multiple-function washing, filling
and capping unit. It is used in washing. filling and sealing all
kinds of non-air drinks such as carbonated beverage ,fruit juice,
oil & vinegar,wine,fruit wine, mineral water and pure
water. The line has features of unique design,new style, complete
functions,multi-purpose, convenient in operation, beautiful
construction, high automaticity. It is the best filling equipment
in China.
--- Feature---
1. 304 Stainless steel construction , and the liquid contact parts
are 316L stainless steel.it is based on you.
2. Schneider PLC and touch screen control for you
3. Servo motor Driven, one servo motor drive one piston, high speed
and high accuracy.
4. No bottle ,no fill, automatic alarm for the warning.
5. The filling blocked nozzles are anti drops, silk, and auto cut
viscous liquid
6. Easy to maintain, no special tools are required.
7. Diving nozzles for bottom up filling of foaming products if need
8. Bottle mouth can be located if need
--- Inside Details Introduction---
Washing Part
1. Main shaft turned 180degree under gear wheel.
2. Let bottle’s mouth face to land, jetting water into bottle,
after a few seconds, the main shaft will be back, than finishing
the washing.
Filling Part
1. Washing finished bottle is conveyed into filling position ,
cylinder push and hold the plate which can hitch bottles .
2. the time lasting of filling can be adjusted .
Capping machine
1. The working is intermission when running.
2. There are six positions for capping, and have 1 capping head,
can automatically cappin.
---Technical Paraments---
| Type | 4-4-1 6-6-1 |
| Applicable bottle size | PET bottle |
| Diameter | ф150-195 mm |
| Bottle height | 230～360mm |
| Rated Capacity | 400-500BPH@5L | 500-800 BPH@5L |
| Cap Style | Plastic Screw Cap 40~55mm Neck for PET Small Bottles |
| Volume | 5.0-10Liters |
| Timing Type | Transducer |
| Filling accuracy | ±0.5% |
| Pressure of washing | 0.25Mpa | 0.3Mpa |
| Pressure of filling | 0.15Mpa | 0.2Mpa |
| Main machine Power | 1KW | 1.6KW |
| Overall size | 6200*1000*2100mm | 7200*1000*2100mm |
| Weight | 1.5Kgs | 2Kgs |
