Electric Driven Type Complete Bottling Line Production For Plastic
Bottle
1.This line is mainly used for the Non-gas drink such as mineral water, pure water, drinking water and
so on.
2.The line design is shorten the time for the drink material
contact with outside, increased the sanitation condition and
throughout and economy benefit.
3.This bottle water filling capping machine adopts the air feeding
device, with clamp hanging the bottle neck, the feed speed is very
quick and the bottle will not be deformed.
4.This line adopts bottle neck holding transmission technology to
realize fully automatic washing filling and capping.
5.The parts which will contact with the beverage will with high
quality stainless steel SUS 304.
A Bottle blowing machine
1.Blow Molding Machine
(including 1 blower and 1 infrared oben)
2.HP Air Compressor
3.LP Air Compressor
4.Air dryer
5.Air filter
6.Air storage tank
7.Water chiller
8.Blowing Mould
B Water Treatment
a.Water pump
b.Silica sand filter
c.Active carbon filter
d.Precision filter
e.Reverse Osmosis
f.High Pressure pump
g.Ozone sterilizer
h.Water storage tank
i.Pipes and valves
C Filling Machine
Model: CGF 18-18-6
Capacity: 8000 bottles per hour
Material: SUS 304
Suitable Bottle: PET bottle
Bottle size: 0.2~2.0L
Function: Water filling line
Operation: Easy &stable
Control: PLC control touch screen
Warranty: 1 year for spare parts
Technical Parameters
Model | CGF8-8-3 | CGF12-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
Rinsing Head No | 8 | 12 | 18 | 24 | 32 |
Filling Head No | 8 | 12 | 18 | 24 | 32 |
Capping Head No | 3 | 6 | 6 | 8 | 10 |
RatedCapacity
(500ml) | 2000BPH | 4000BPH | 7000-8000BPH | 10000-12000BPH | 12000-15000BPH |
Overall Size | 1900*1420*2000mm | 2200*1600*2300mm | 2450*1900*2300mm | 2750*1180*2400mm | 4000*2300*2300mm |
Weight | 1.5T | 2.2T | 3.0T | 4.0T | 8.0T |
Power(KW) | 3.0kw | 3.5kw | 4.0kw | 4.8kw | 7.6kw |
Rated Voltage | 380V | 380V | 380V | 380V | 380V |

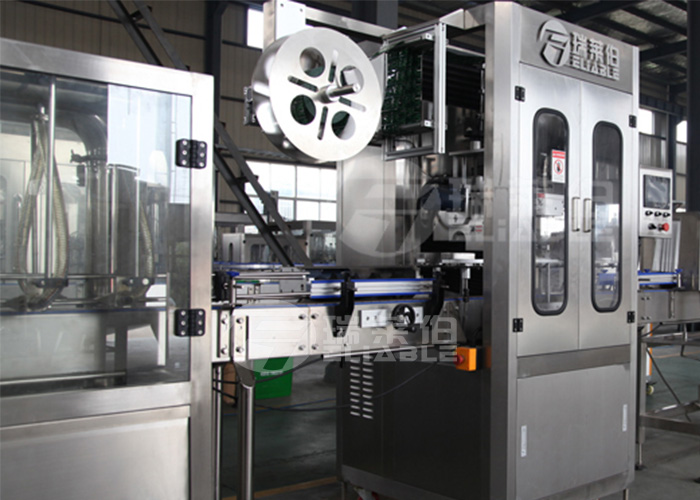

D Automatic Labeling Machine
Label length: 35-250mm
Label thickness :0.035-0.08mm
Production capacity: 12000BPH
Suitable bottle diameter :28-120mm
Suitable bottle height: 150-320mm
Suitable bottle type: round type, elliptical type, square type,
curve type
Power :220v, 50HZ
E Date Printer
1.Appearance design of Business style
2.Convenient way of one button open mode
3.Support multi receipt printing and black label detecting
technique
F Packinging Machine
Capacity: 8-12bag/min
Facility external size: L5050×W3300×H2100mm
Wrapping max size: L600×W400×H350mm
Shrinkage thermo thickness: 0.03-0.15mm
Facility power:18Kw
Electric Driven Type Complete Production Line For Plastic Bottle
How to get your suitable machine or production line ?
• Find our products through Reliable Machinery Co.,Ltd in Google
,Baidu. Bing ,Yahoo, Alibaba.com etc
• Enquiry: Contact us by email, phone call, fax, Instant Messenger
(Trademanager, MSN, Skype) and let us know your enquiry.
• Discussion: Specify the items you desire, confirm specification;
OEM/ODM consultation.
1.What kind of products will you produce ?
2. What is the capacity(per hour) you want ?
3.What kind of package , plastic bottle ,glass bottle : volume
,height ,neck diameter ,diameter of bottle or other please inform
us of details .
4. Sole machine or whole production line .
• Quotation: Prices offered and accepted.
• Place order as per contract or discussion.
• Perform invoice( sales contract ) In duplicate confirmed and kept
by both sides.
• Payment settled.
• Order completed under our arrangement.
• Goods shipped as per contracted term.
FAQ
Q1:Are you a trading company or a manufactory?
A1:We own a factory ourselves, and we can assure the quality we
manufactured.
Q2:What’s your guarantee or the warranty of the quality if we buy
your machines?
A2:We offer you high quality machines with high quality
after-service. Also we have one year warranty of the spare parts,
free of charge.
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both
side.
