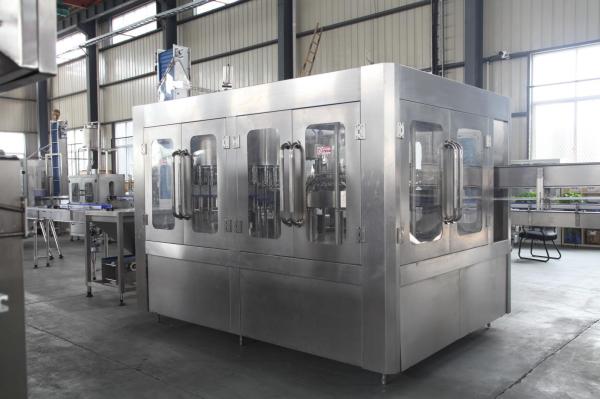

0.2-2L Water Bottle Filling Machine 7000BPH Stainless Steel 304
1. Advanced intelligent operating systemWith PLC software support, the adjustment only needs to set the
target amount on the touch screen, and the device can automatically
increase or decrease to reach the target amount. Color touch
display, all functions such as operation, monitoring, operation
instructions, etc. are completed in the touch screen.
2. Stable filling and rehydration functionAdopting the principle of functional separation, no rehydration is
required during the filling process, and the rehydration process is
not installed, thereby overcoming the instability of the refilling
at the same time of floating filling.
3. Wide application range and convenient adjustment
It is suitable for the filling of most bottle types (especially
shaped bottles), which overcomes the trouble of changing the dial
when the rotary filling machine replaces the bottle type. For the
irregular bottle type which can not be filled by the rotary filling
machine, the machine has Greater advantage.
Model No |
CGF8-8-3 | CGF12-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-8 |
Washing No |
8 | 12 | 18 | 24 | 32 |
Filling No |
8 | 12 | 18 | 24 | 32 |
Capping No |
3 | 6 | 6 | 8 | 8 |
Capacity(500ml)bph | 1500-2000
| 3500-4000 | 6000-7000 | 8000-10000 | 12000-15000 |
Power(Kw)
| 2 | 3.5 | 4 | 4.8 | 7.6 |
Application | Drinking Water,Pure Water,Mineral Water,Spring Water and so on. |
User Ambient Conditions | Temperature:10~40℃;Humidity:No dew |
User Electrical Supply Specification | Voltage:220V,380V,3phase;Frequency:50HZ/60HZ or your requirement |
Polyester bottle standard(mm) | bottle diameter φ50-110 ; bottle height 150-340mm;200-2000ml
volume;PET circular or square |
Suitable cap shape | |
Suitable cap size
| 28mm or 30mm Neck for PET Small Bottles |
Detailed Images
⬅Washing Part
The gripper is made of stainless steel, the position where hold the
bottleneck is also made of stainless steel, compared with the
traditional rubber gripper, it is much hygiene, durable, and no
quick-wear parts, the screw parts of the bottleneck can avoid being
polluted by the rubber gripper.
⬅Filling Part
The pressure mechanical valve is introduced the advanced foreign
design with a fast filling speed, no hygiene corner pocket, a few
sealing parts, and precise liquid level control.
⬅Capping Part
(1)The capping machine can cap different kinds of bottles, it is
reliable, easy to operate and easy to maintain.
(2)It are widely used in wines, food, drinks, medicine, chemicals,
reagents, pesticides and automatic packing etc.
(3)It is the most popular rotary screw automatic folding capper.
⬅Air Conveyor
Air filter is positioned at every entrance of air fan, to prevent
dust blown into bottles. Bottles are held on the neck in the
conveyor and transported into filling machine by blowing power.
Our Factory
Zhangjiagang Reliable Machinery Co., Ltd. is a hi-tech de-signing
and manufacturing enterprise, which is specializedin beverage
production and packing complete lines as wellas various water
treatment machines.
We are one of the earliest companies engaged in manufacturing
liquid filling and packing equipment in China ,Our products
include:Liquid flling machines (water, fruit juice/tea, carbonated
drink, oil, alcohol, plant protein drink, etc.), Barreled
fllingline (3-5 gallon) Water treatment machines, Labeling
&packing machines, semi-automatic /full automatic blowing
machines, and injection molding machines.
ReliableMachinery can provide turn-key services for customers,from
plant layout, equipment manufacture and productionline setup to
operator training.
Our Service
Reliable sample service
1. Send you video of the running machine.
2. Welcome to come to visit our factory, see the detail of
machines.
3. Well-trained & experienced staff are to answer all your
inquiries in English and Chinese
Reliable Customized service
1. Design the machines according your requirements(material,
voltage , filling type, various bottles, specially designed device
and so on) .
2. Reliable Professional suggestion, as you know, our company is
among the best in the beverage machinery industry and our engineer
has experience for many years.
3. Design layout for you and offer you advice about machine
orientation or based on the factory area you have.
