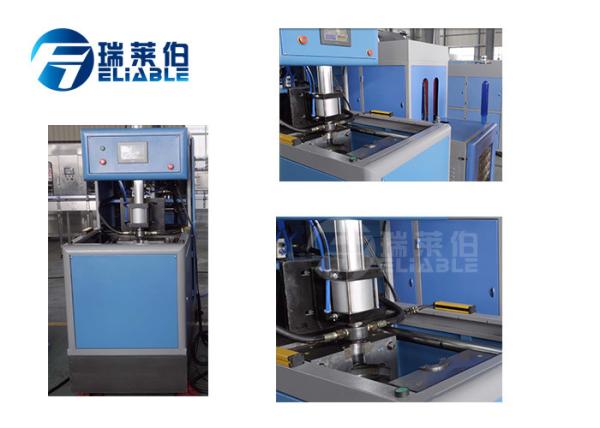

5 Gallon PET Bottle Blowing Machine 2350*750*1900MM CE ISO9001 SGS
Technical Parameters
Parameter | Container | Number of cavity | pcs | 1 | | Max. container volume | Ltr | 20 | | Neck diameter range | mm | 30-120 | | Max. container diameter | mm | 300 | | Max. container height | mm | 430 | | Carriage unit | pcs | 19 | | Theoretical output | BPH | 150 | | Electric system | Total power | kw | 39 | | Heating power | kw | 38 | | Max. heating power | kw | 20 | | Air system | Operating pressure | Kg/cm2 | 7 | | Low air consuming | Ltr/min | 1000 | | Blowing pressure | Kg/cm2 | 25 | | High air consuming | Ltr/min | 1800 | | Machine size | Dimension | Mm | 2350*750*1900 | | Weight | kg | 1500 |
|
Introduction of plastic bottle blow molding machine
PET bottle blow molding machine is used to blow bottles from PET
perform which can be bought directly from the market.
We will help to design the bottle shape basing on clients’
requirement before making bottle mold. We will suggest the preform
weight basing on the bottle type.
Application: Food, oil, carbonated drinks, mineral water, alcohol,
medicine, chemical etc;
Features:
1.Adopt special electronic controlling circuit for heating; high
efficiency in simultaneous controlling one lamp or more; lower
power consumption.
2.Adopt the theory of heat transfer and feedback while designing
the shape and thikness of preform.
3.The preform will be heated evenly, not be influenced by outside
environment.
4. Cooling system with cold air cycle ensures same heat exposure of
internal and external surface of the bottles.
5.The air exhaust system designed by CAD can guarantee the
deviation of heating furance temperature +/-1 degree.
6.Air circuit system consists of movement and blowing so as to meet
the needs of different air pressure, also to provide
stable high pressure for blowing different shapes of big capacity
bottles.
7.The system is equipped with silencer, connecting rod and
articulated refueling devices.
8.Two modes of operation: semi-automatic mode and automatic mode.
9.Small size, low investment. one person enough to operate, simple
and safe.
♥ Why Choose Us
1. More than 10 years’ professional experience in plastic machine industry.
2. Fast delivery: Reply the mail and take action in 24 hou. Strict quality control system and after-
sales service. 1 year warranty .During warranty, we provide free of charge for
repairing
cost. Lifetime maintenance. After-sales department can provide life time
maintenance service.
3. Our price is competitive factory price.
