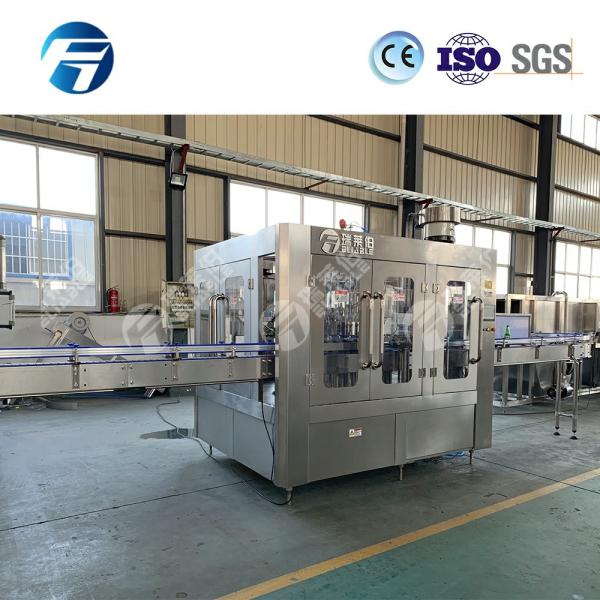

Juice Drinks Glass Bottle Filling Machine / Wine Bottling Equipment High Speed

Ask Lasest Price
Brand Name :	Reliable
Model Number :	CGFD-C18-18-6
Certification :	CE,TUV,SGS,ISO
Price :	45000 USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	15sets / month
Delivery Time :	About 30~45 Days after receive down payment and sample bottles
MOQ :	One set

Add to Cart

Product Details
Company Profile

Juice Drinks Glass Bottle Filling Machine / Wine Bottling Equipment High Speed

Automatic Glass Bottle Juice Drinks Filling Machine / Wine Bottling Equipment

Product Description

1. It combines flushing, filling and sealing functions on the same machine.

2. It has a scientific and reasonable design, beautiful appearance and complete functions.

3. Easy operation, maintenance and highly automated.

4. The whole machine is controlled by PLC with touch screen, and the amount of beverage in the beverage can can be automatically controlled. When there are no bottles, filling and capping will stop automatically.

Detailed Information

Name	Glass Bottle Filling Machine for Beer
Color	Silver gray
Capacity	5000-6000 BPH (The filling speed is adjustable)
Material	Food stage ss304
Suitable bottle	Glass bottle
Cap	Metal Crown Cap
Bottle size	200~ 2000ml Glass Bottle
Function	Rinsing - filling - capping 3 in 1
Customized	Acceptable
Operation	Easy & Stable
Warranty	2 year for spare parts

Technical Data

Rinsing heads	18 Heads
Filling heads	18 Heads
Capping heads	6 Heads
Frequency converter	Mitsubishi
PLC	SIMENS
Main motor	4kw
Rinsing water pressure	0.06 MPa ＜ P ≤ 0.2 MPa
Pressure of Liquid tank	≤0.45Mpa
CO2consumption	160g/l00L

Three Parts of Filling Machine

Washing Station

➢ All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
➢ 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
➢ 304 stainless steel washing pumps

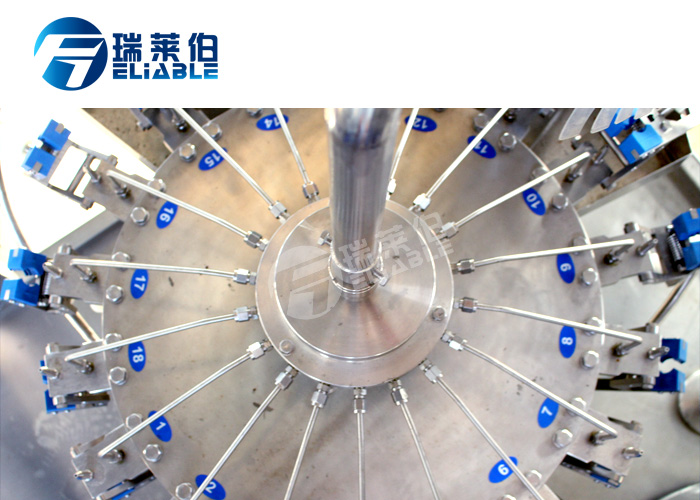

Filling Station

➢ High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,
➢ All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
➢ No bottle no filling

Capping Station

➢ Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
➢ All 304stainless steel construction
➢ No bottle no capping
