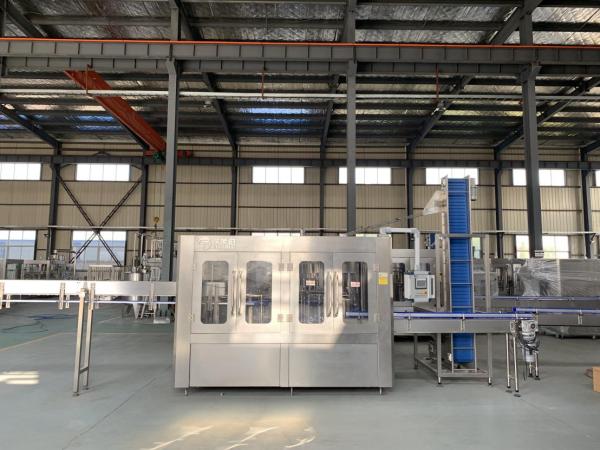

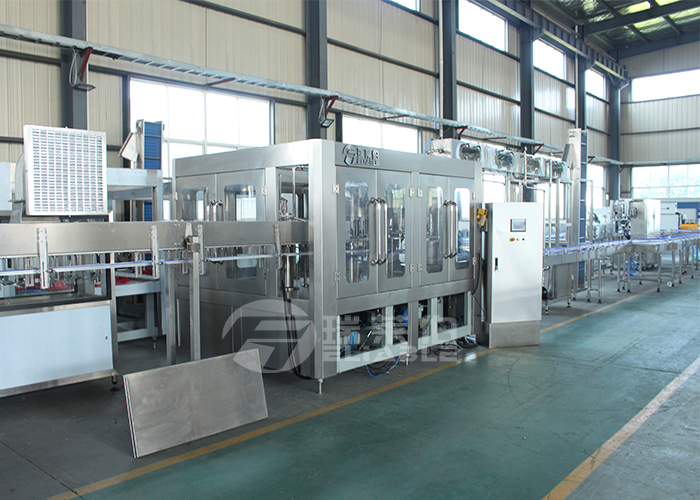

Monoblock Water Bottle Filling Plant , Industrial Bottle Filling
Machine
Water Bottle Filling Plant Description:
1. Suspending bottle-neck clamping design makes bottle stable
during the high-speed moving conditions. By changing a few parts,
it can meet the need of production of different types of bottles
easily.
2. The new generation of stainless steel grab is adopted and the
grabs have no contact with the area above the bottle's screw
thread. Nozzles in the grab can guarantee the complete wash of the
interior of the bottle.
3. The advanced gravity filling technology used in this machine
makes the filling quick, steady and accurate.
4. Magnetic torque is used for screw capping, and the power of
screw capping can be adjusted steplessly. Capping is reliable and
do no harm to the bottle caps.
Water Bottle Filling Plant working process
The bottle is passed by air conveyor to the washing part. With
clamp of bottle neck, turn 180 °, the bottle down. The nozzle of
the bottle holder spits water and rinses the inside of the bottle.
Bottle after rinse and drain the turn 180 °, the bottle up. The
cleaned bottle is sent to the filling part. Into the bottle filling
machine by the bottleneck of supporting board and under the action
of CAM bottle, filling valve opens the material through the filling
valve complete filling process, after the filling bottle fell out
filling valve, the bottle into the screw cap machine. Keep the
bottle upright and prevent rotation. The cover is rotated and
rotated on the cover machine to complete the whole sealing process.
The finished product bottle is transferred from the capping machine
to the bottle delivery chain through the bottle release pulley, and
then to the machine.
Water Bottle Filling Plant Details:
1) Washer Part
Ø All 304 stainless steel rinser heads, water spray style inject
design, more save water consumption & more clean
Ø 304 Stainless steel Gripper with plastic pad, ensure minimal bottle
crash during washing
Ø 304 stainless steel washing pumps
Ø No bottle no washing
2) Fillier Part
Ø High precision filling nozzle, PLC variable signal control, ensure
high filling precision & filling smoothly & steadily,
Ø All 304 stainless steel contact parts & liquid tank, fine polish,
easy to clean
Ø No bottle no filling
3) Capper Part
Ø Place & capping system, electromagnetic capping heads, with burden
discharge function, make sure minimum bottle crash during capping
Ø All 304stainless steel construction
Ø No bottle no capping
Water Bottle Filling Plant Specifications
Model | CGFA8-8-3 | CGFA12-12-6 | CGFA18-18-6 | CGFA24-24-8 | CGFA32-32-10 | CGFA40-40-10 |
Washing No. | 8 | 12 | 18 | 24 | 32 | 40 |
Filling No. | 8 | 12 | 18 | 24 | 32 | 40 |
Capping No. | 3 | 6 | 6 | 8 | 10 | 10 |
Production capacity (0.5L BPH) | 2000 | 4000 | 7000-8000 | 10000-12000 | 12000-15000 | 15000-18000 |
Installed Capacity(KW) | 3 | 3.5 | 4 | 4.8 | 7.6 | 8.3 |
Overall size(LXWXH) | 2250*1800 *2400 | 2450*1800 *2400 | 2650*1900 *2400 | 2900*2100 *2400 | 4100*2400 *2400 | 4550*2650 *2400 |
Competitive Advantage:
1.We have business relationship with many countries such as Europe,
America, UK,Africa, Middle East, Southeast Asia and so on, and we
are proud of our turnkey project.
2.We have one year warranty for all our machines and engineers are
overseas available to install and adjust for you.
3.If our client has any question about the machine, we will give
our best service to solve the problem.
4.We have our own factory, the quality of our machine is quite
reliable and controllable, thus, we can guarantee our good quality.
Our Company
1.Zhangjiagang Reliable Machinery Co., Ltd is specialized in
beverage drinking production and packing equipment.
2.We are one of the companies engaged in manufacture liquid filling
and packing equipment in China.
3.Our products include: Liquid filling machines (water,fruit
juice/milk, carbonated drinks, oil, alcohol, plant protein drink,
etc.)；5 Gallon filling line；Water treatment machines；Labeling &
packing machines；semi-automatic/full automatic bottle blowing
machines；Injection molding machines.
