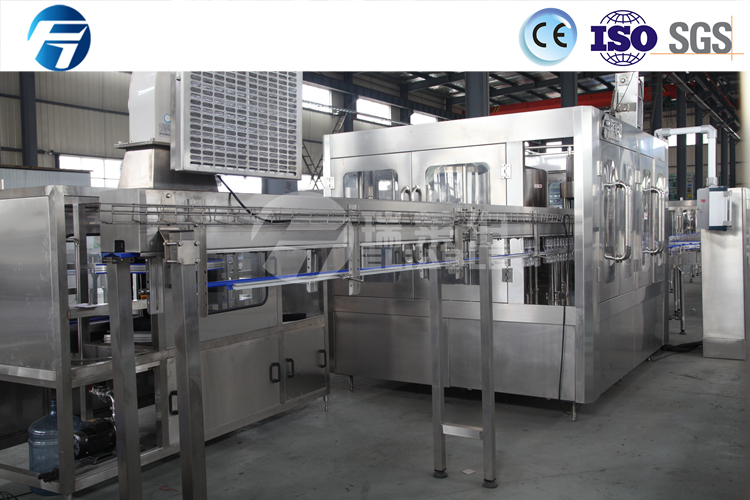

PLC Touch Screen Plastic Bottle Complete Automatic Pure Mineral RO
Mineral Bottle Water Filling Packing Machine Line
The introduction of washing filling and capping machine.
The kind of bottle water filling machine set main parts , it
combines rising , filling and rotation capping ,as a good result ,
in a short time the material connect outside . Improve the sanitary
conditions , increase the production capacity , strengthen economic
development and efficiency . The series of filling machine design
is excellent , production is accurate , functionality is nice ,
operation is simple , is a fully automatic and very trustworthy
,also , is most advanced bottle water filling machine.
Special product can be customized by your demand!!!
Application | Non-carbonated drink water,such as mineral/pure water,spring/nature
water |
Model | CGFA24-24-8 |
Capacity | 10000 Bottles per hour/500ML PET bottle |
Bottle Material | PET/Plastic bottle |
Bottle Shape | Square/Round bottle |
Bottle height | 150-340mm |
Bottle diamete | φ50-110 |
Cap type | Plastic screw cap,28 or 30mm |
Suitable bottle volume | 200-2000ml |
User Ambient Conditions | Temperature:10~40℃;Humidity:No dew |
User Ambient Conditions | Voltage:220V,380V,3phase;Frequency:50HZ/60HZ or your requirement |
Label Type | PVC label: Shrink Sleeve Labeling Machine/Self adhesive label:
Sticker Labeling Machine |
Dater Printer | Inkjet printer or Laser date printer |
Package type | PE film shrink wrapping packing machine or carton box packing
machine |
Main Features
1. High quality Stainless steel 304, if needed,SS 316 is also
available.
2. Bottle neck holding transmission technology.
3. Most elements of the electrical system use famous international
brand, such as Mitsubish, Omron brand.
4. Good abrasive resistance,high stability,low failure rate.
5. Advanced technologies, human-machine interface touch screen and
PLC program control.
6. No bottle, No washing,No filling,No capping
7. Energy saving
Washing Parts
Bottle neck technology, turn up to 180° washing.
All 304/316 stainless steel rinse heads, water spray style inject
design, more save water consumption and more clean
304/316 Stainless steel Gripper with plastic pad, ensure minimal
bottle crash during washing
304/316 stainless steel washing pump
Filling Parts
304/316 Stainless steel high precision filling nozzle
Gravity filling, Filling volume adjustable in fine rank, same
liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine
polish, no death corner, easy to clean
304/316 stainless steel filling pump
Capping Parts
Place and capping system, electromagnetic capping heads, with
burden discharge function, make sure minimum bottle crash during
capping.All 304/316 stainless steel construction.
Pre-Sales Service
Free 2D & 3D Bottle Design,Free Layout Plant Design,Video
supporting
After-Sales Service
With excellent equipment , Professional Installation team overseas
, Professional after sale service team and 24 hours hotline on line
, Reliable has cooperated closely and win-win turkey project with
well-known enterprises more than 50 countries and regions over the
world .
All Product will be supply after-sale service as follow :
1. Installation guides before our engineer came
2. Device Debugging in customer's factory
3. Technical training to local customer engineers
4. Q&A Consultant
5. Client Review for the machine operation situation
6. Production line maintenance
All those process to help our customer make full use of our
beverage production line .
